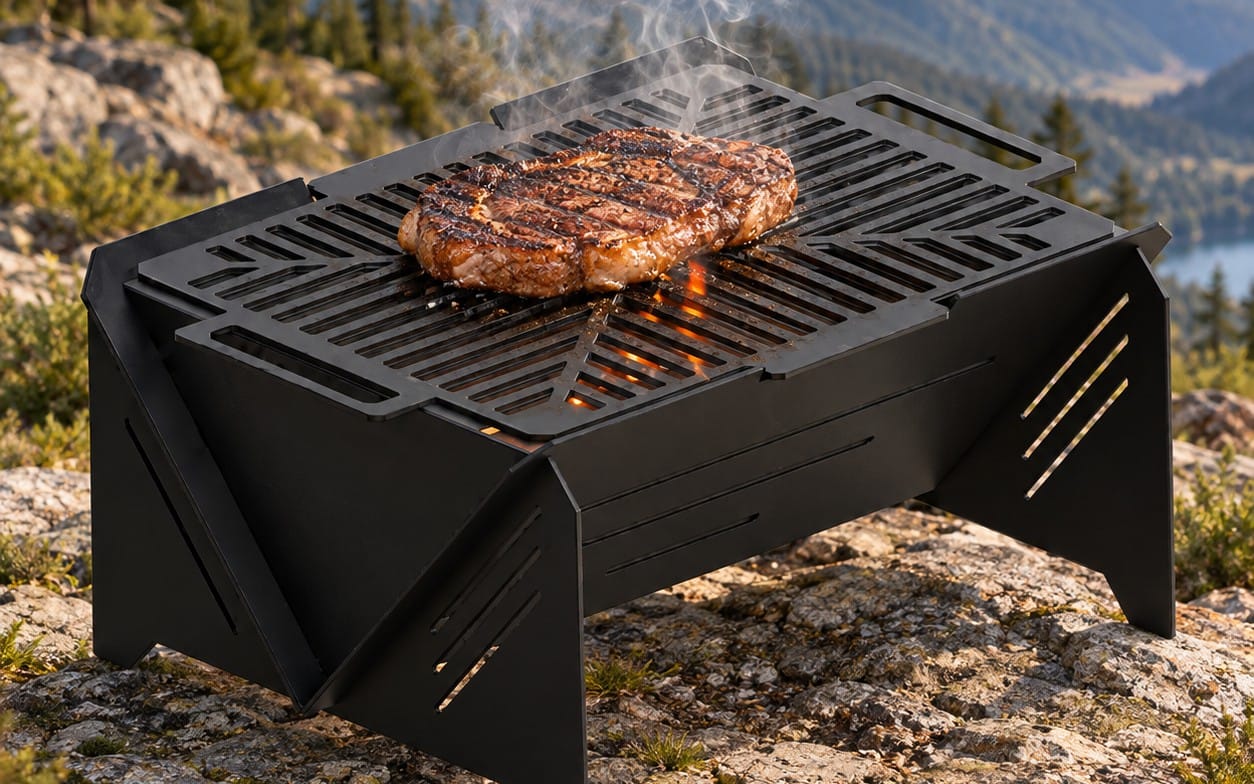

Grillox Portable BBQ Grill Digital Fabrication Package

Build a robust and minimalist metal BBQ grill with Grillox, a professionally engineered fabrication project designed around thick steel components, precision laser cutting, and a straightforward structural assembly.

Grillox is manufactured entirely from 5 mm steel, providing a substantial cooking surface and rigid support structure suitable for outdoor grilling applications.

The main cooking plate features an integrated slot-based connection system at its corners. The separate support legs engage with these slots, allowing the legs to be positioned and secured directly to the grill plate without requiring a complex assembly structure.

One of the key characteristics of Grillox is its laser-cut construction. The grill plate and support components are designed as flat components that can be produced directly using CNC laser cutting, reducing the need for additional forming operations.

The slot-based connection also simplifies fabrication by integrating the required connection geometry directly into the laser-cut components.

After laser cutting, the components can undergo deburring and surface preparation according to the desired production quality and final appearance.

Surface finishing is flexible and can be selected according to the intended application. The components may be left with a prepared bare-steel finish or receive a suitable protective coating or paint system.

The combination of 5 mm material thickness, precision laser-cut geometry, integrated slot connections, and a minimal component count makes Grillox a practical fabrication project for metalworking businesses, fabrication workshops, manufacturers, and DIY makers.

From laser cutting and edge finishing to surface treatment and final assembly, the complete digital package provides the technical files and documentation required to reproduce the design.

Features

• Professionally engineered metal BBQ grill

• Robust and minimalist outdoor cooking design

• 5 mm steel construction

• 5 mm cooking plate

• 5 mm support legs

• All main components manufactured from the same material thickness

• Precision CNC laser-cut construction

• Integrated slot connection system

• Corner-mounted support legs

• Legs connect directly to the grill plate through dedicated slots

• Fabrication-friendly component design

• Minimal manufacturing processes

• No press brake bending required

• Surface preparation optional

• Painting or protective finishing optional

• Suitable for custom finishing

• Rigid and heavy-duty construction

• Modern industrial appearance

• Editable CAD files

• Production-ready DXF files

• Complete manufacturing documentation

• Suitable for professional fabrication and DIY makers

• Instant digital download
