Grillora Portable Steel Grill Digital Fabrication Package

Manufacture your own compact and durable outdoor grill with the Grillora Portable Steel Grill, a professionally designed laser-cut sheet metal fabrication project optimized for efficient production and straightforward assembly.

Grillora is manufactured primarily from 2 mm Mild Steel (ST37), providing a strong and durable structure while maintaining a practical material thickness for laser cutting and fabrication.

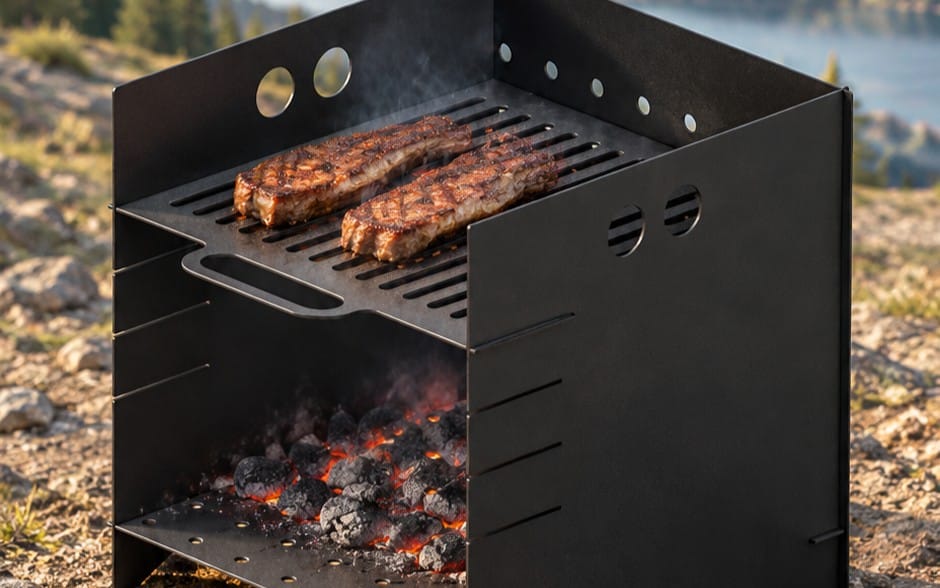

The cooking grate is manufactured from 4 mm steel, providing additional rigidity and durability for direct cooking applications. The grate incorporates four adjustment slots, allowing its position to be changed to control the distance between the cooking surface and the heat source.

Unlike conventional fabricated grills that require extensive welding and forming operations, Grillora is designed around laser-cut components, simplifying the manufacturing workflow. After laser cutting, the components can be deburred, surface-prepared, and finished with the desired coating before final assembly.

The clean geometric construction gives Grillora a modern industrial appearance while keeping the design suitable for practical outdoor cooking applications.

The design is suitable for fabrication workshops, metalworking businesses, product manufacturers, makers, and DIY users looking for a ready-to-manufacture digital grill design.

Simply cut the components using the supplied DXF files, remove burrs and sharp edges, apply the desired surface finish, and assemble the components according to the supplied documentation.

Features

• Professionally engineered sheet metal grill

• Designed for CNC laser cutting

• Primarily manufactured from 2 mm steel

• 4 mm cooking grate for increased rigidity

• Adjustable cooking grate height

• Four height-adjustment slots

• Compact and practical grill design

• Modern industrial appearance

• Laser-cut component construction

• No press brake operation required

• No welding required for the fabrication process

• Simple mechanical assembly

• Efficient manufacturing workflow

• Suitable for small-batch production

• Fully editable CAD files

• Production-ready DXF files

• Complete technical documentation

• Detailed Assembly Guide included

• Suitable for professional fabricators and DIY makers

• Instant digital download

Package Includes

• SolidWorks Source Files (.SLDPRT & .SLDASM)

• DXF Cutting Files

• STEP 3D Model

• Technical Drawings (PDF)

• Bill of Materials (BOM)

• Manufacturing Guide

• Assembly Guide

• Product Images

• ReadMe

• License Agreement

Technical Specifications

Specification

Value

Model

Grillora

Product Type

Portable Steel Grill

Category

Outdoor Cooking

Design Style

Modern Industrial

Construction

Laser-Cut Sheet Metal

Manufacturing Method

CNC Laser Cutting

Primary Material

Mild Steel (ST37)

Main Component Thickness

2 mm

Cooking Grate Thickness

4 mm

Cooking Grate Adjustment

Adjustable

Adjustment Positions

4

Adjustment Mechanism

Four Positioning Slots

Assembly Method

Mechanical Assembly

Welding Required

No

Bending Required

No

Surface Finish

Powder Coating Recommended

Measurement Unit

Millimeters (mm)

File Type

Digital Fabrication Package

Recommended Material

Main Material

• Mild Steel (ST37)

Main Component Thickness

• 2 mm

Cooking Grate

• 4 mm Mild Steel

The thicker 4 mm cooking grate provides greater rigidity and improved resistance to deformation during repeated heating and cooling cycles.

Alternative Materials

Depending on the intended application and manufacturing requirements, alternative materials may include:

• Stainless Steel

• Aluminum

• Weathering Steel (Corten)

Alternative materials or different thicknesses may require adjustments to laser cutting parameters, clearances, slot dimensions, tolerances, and overall design performance.

Recommended Surface Finish

Recommended finishing options include:

• Matte Black Powder Coating

• Fine Texture Powder Coating

• Satin Powder Coating

• Custom RAL Powder Coating

• High-Temperature Resistant Coating where appropriate

• Bare Steel Industrial Finish

Important: For surfaces exposed directly to cooking heat or food contact, use a coating system specifically suitable for the intended temperature and application. Do not assume that a standard decorative powder coating is suitable for direct food-contact or high-temperature surfaces.

Adjustable Cooking Grate

One of the key functional features of Grillora is its adjustable cooking grate.

The cooking grate is manufactured from 4 mm steel and incorporates four adjustment slots/positions.

These positions allow the cooking surface to be installed at different heights, providing flexibility in the distance between the food and the heat source.

The adjustable configuration can be used to:

• Increase or decrease cooking distance

• Control cooking intensity

• Adapt the grill to different foods

• Provide greater flexibility during outdoor cooking

The four-position adjustment system is integrated directly into the laser-cut components, eliminating the need for additional height-adjustment mechanisms.

Assembly

The Grillora Portable Steel Grill is designed for straightforward mechanical assembly following the supplied technical documentation.

After all components have been laser cut and finished, position the structural panels and install the components according to the Assembly Guide.

The cooking grate can then be installed in one of the four available height positions according to the desired cooking configuration.

Before use, verify that all components are correctly positioned, securely assembled, and stable.

Why Choose Grillora?

• Professionally engineered laser-cut grill design

• Optimized specifically for CNC laser cutting

• Simple manufacturing workflow

• 2 mm steel structural components

• Durable 4 mm cooking grate

• Four-position adjustable cooking height

• No press brake required

• No welding required

• Minimal fabrication operations

• Modern industrial design

• Efficient sheet metal construction

• Editable CAD files included

• Production-ready DXF files

• Complete technical documentation

• Suitable for professional manufacturing

• Suitable for makers and DIY fabrication

• Ideal for small-batch production

Purchase Note

This is a digital product only.

No physical item will be shipped.

The package contains digital design and manufacturing files for producing the Grillora Portable Steel Grill.

Please verify that your CAD software and CNC laser cutting equipment support the included file formats before purchasing.

Because this is a digital download, all sales are final.

Please review the included License Agreement before commercial production, modification, distribution, or resale.

Important: The digital design files are provided for fabrication purposes. The manufacturer is responsible for verifying material suitability, fabrication tolerances, assembly integrity, coating suitability, and safe use of the finished product.
